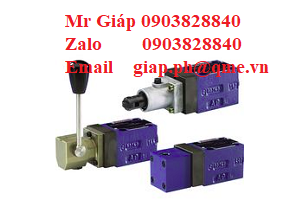

M-SMM series van định hướng Rexroth



Type code

01		02	03	04	05	06		07	08	09	10	11	12
M	-		SMM			3X	/						*



1	Mineral oil					M
02	2 main ports (NG6 only)					2
	3 main ports					3
	4 main ports					4
03	Seat valve, direct operated					SMM
			Manually actuated (hand lever)
04	Size 6					6
	Size 10					10
05	Main ports		2 1)	3	4
	Symbols		●	–	–	P
			●	–	–	N
			–	●	–	U
			–	●	–	C
			–	–	●	D
			–	–	●	Y
			● = available
06	Component series 30 … 39 (30 … 39: unchanged installation and connection dimensions)					3X
07	Without detent					no code
	With detent					F
08	Operating pressure 420 bar					420 bar
	Operating pressure 630 bar					630 bar
Additional equipment Inductive position switch
09	Without position switch					no code
	Monitored spool position “a”					QMAG24
	Monitored spool position “b”					QMBG24
10	Without check valve insert, without throttle insert					no code
	With check valve insert					P
	Throttle Ø 1.2 mm					B12
	Throttle Ø 1.5 mm					B15
	Throttle Ø 1.8 mm					B18
	Throttle Ø 2.0 mm					B20
	Throttle Ø 2.2 mm					B22
	Other orifices on request
Seal material
11	NBR seals					no code
	FKM seals (other seals upon request)					V
	Observe compatibility of seals with hydraulic fluid used.
12	Further details in the plain text					*



Model	Code
M-2SMM 6 N3X/420	R900988347
M-2SMM 6 N3X/420V	R901342778
M-2SMM 6 P3X/420QMBG24	R901421055
M-2SMM 6 P3X/630	R901368952
M-2SMM 6 P3X/F630/P	R901281588
M-3SMM 10 C3X/420	R901340449
M-3SMM 10 C3X/630	R900219069
M-3SMM 10 C3X/630/B22	R900208935
M-3SMM 10 C3X/F420	R900220751
M-3SMM 10 C3X/F420QMAG24	R901405680
M-3SMM 10 C3X/F630	R900220589
M-3SMM 10 U3X/630/B22	R900897746
M-3SMM 10 U3X/F420/V	R901361495
M-3SMM 10 U3X/F420QMAG24	R901432745
M-3SMM 6 C3X/420	R900054483
M-3SMM 6 C3X/420/B12	R900988107
M-3SMM 6 C3X/420/B20	R900085937
M-3SMM 6 C3X/420/P	R901441747
M-3SMM 6 C3X/420/V	R901395869
M-3SMM 6 C3X/630	R900089592
M-3SMM 6 C3X/F420	R900082104
M-3SMM 6 C3X/F420/B12	R900225244
M-3SMM 6 C3X/F420/V	R901420211
M-3SMM 6 C3X/F420QMAG24V	R901355663
M-3SMM 6 C3X/F420QMBG24	R901419229
M-3SMM 6 C3X/F630	R900083874
M-3SMM 6 C3X/F630/P	R900213993
M-3SMM 6 U3X/420	R900057831
M-3SMM 6 U3X/420/V	R901016773
M-3SMM 6 U3X/F420	R900204553
M-3SMM 6 U3X/F420/V	R900085509
M-3SMM 6 U3X/F630/P	R900083875
M-4SMM 10 Y3X/420	R901378228
M-4SMM 6 D3X/420	R901121178
M-4SMM 6 D3X/F420	R900089314
M-4SMM 6 D3X/F420QMBG24	R901412705
M-4SMM 6 D3X/F630	R900226954
M-4SMM 6 Y3X/420/V	R901176153
M-4SMM 6 Y3X/630	R900089593
M-4SMM 6 Y3X/F420	R901435700
M-4SMM 6 Y3X/F420/V	R901251401
M-4SMM 6 Y3X/F630	R900087439
