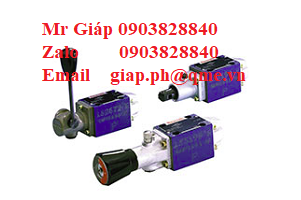

Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
|
09 |
10 |
11 |
12 |
13 |
|
|
WMM |
6 |
|
5X |
/ |
|
|
|
/ |
|
no code |
|
|
* |
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Hand lever |
WMM |
|
03 |
Size 6 |
6 |
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
|
06 |
With spring return |
ohne Bez. |
|
Without spring return with detent |
F |
|
|
Corrosion protection |
||
|
07 |
Standard corrosion protection |
ohne Bez. |
|
Improved corrosion protection 1) |
J |
|
|
Spool position
monitoring 2) |
||
|
08 |
Without position switch |
ohne Bez. |
|
Inductive position
switch type QM |
||
|
Monitored spool position "a" |
QMAG24 |
|
|
Monitored spool position "b" |
QMBG24 |
|
|
Monitored rest position |
QM0G24 |
|
|
09 |
Without throttle insert |
ohne Bez. |
|
Throttle Ø 0,8 mm |
B083) |
|
|
Throttle Ø 1,0 mm |
B10 3) |
|
|
Throttle Ø 1.2 mm |
B12 3) |
|
|
Clamping length |
||
|
10 |
42 mm (standard) |
no code |
|
Seal material |
||
|
11 |
NBR seals |
ohne Bez. |
|
FKM seals |
V |
|
|
Observe
compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
12 |
Without locating hole |
ohne Bez. |
|
With locating hole |
/604) |
|
|
With locating hole and locking pin ISO 8752-3x8-St |
/62 |
|
|
13 |
Further details in the plain text |
* |
1.
The external parts made of metal are galvanized, treated with an
anti-corrosion agent or made of stainless steel. This design is also suitable
for on-wall applications.
2.
Only for valves with 2 spool positions and versions
3.
“WMM”; not for version “J”
4.
Use if flow > performance limit of the valve, effective in
channel P.
5.
Locking pin ISO 8752-3x8-St, material no. R900005694,
separate order
|
Model |
Code |
|
3WMM 6 A5X/ |
R900467935 |
|
3WMM 6 A5X//B12 |
R901237218 |
|
3WMM 6 A5X//MT |
R901421697 |
|
3WMM 6 A5X//V |
R900486233 |
|
3WMM 6 A5X/F |
R900472754 |
|
3WMM 6 A5X/F/B10 |
R901236051 |
|
3WMM 6 A5X/F/B10V |
R900937920 |
|
3WMM 6 A5X/F/V |
R900479099 |
|
3WMM 6 A5X/FJ |
R901250799 |
|
3WMM 6 A5X/FQMAG24 |
R900702795 |
|
3WMM 6 A5X/FQMBG24/B08 |
R901339723 |
|
3WMM 6 A5X/J |
R901274605 |
|
3WMM 6 A5X=/V |
R901322067 |
|
3WMM 6 B5X/ |
R900496518 |
|
3WMM 6 B5X/F |
R900490248 |
|
3WMM 6 B5X/F/B12 |
R900771389 |
|
3WMM 6 B5X/F/V |
R900513943 |
|
3WMM 6 B5X/FQMBG24 |
R900712116 |
|
3WMM 6 B6X/F IN002 |
R983073225 |
|
3WMM6 A 6X/F -IN002 |
R983030735 |
|
3WMM6 A-6X/ -IN002 |
R983030739 |
|
3WMM6 B 6X/ -IN002 |
R983030736 |
|
3WMM6A9-5X/F |
R978003896 |
|
4 WMM 6 J 5X/ SO26-645 HANDLE LHS |
R987152405 |
|
4 WMM 6 J 5X/ SO26-661 HANDLE RHS |
R987152406 |
|
4 WMM 6 J 5X/F SO26-542 |
R987152407 |
|
4 WMM 6 J 5X/F SO26-542 |
R987152407 |
|
4WMM 6 C5X/ |
R900479281 |
|
4WMM 6 C5X//B08 SO86 |
R900714181 |
|
4WMM 6 C5X//B10 |
R901158115 |
|
4WMM 6 C5X//B12 |
R900705808 |
|
4WMM 6 C5X//B12V |
R901410924 |
|
4WMM 6 C5X//V |
R900497305 |
|
4WMM 6 C5X/F |
R900472158 |
|
4WMM 6 C5X/F SO43A-422 |
R901311359 |
|
4WMM 6 C5X/F SO86 |
R900382430 |
|
4WMM 6 C5X/F/B08 |
R900339423 |
|
4WMM 6 C5X/F/B10 |
R900356033 |
|
4WMM 6 C5X/F/B12 |
R900443660 |
|
4WMM 6 C5X/F/V |
R900478764 |
|
4WMM 6 C5X/FJ |
R901382906 |
|
4WMM 6 C5X/FQMAG24 |
R901425067 |
|
4WMM 6 C5X/QMAG24 |
R900914980 |
|
4WMM 6 C5X/QMAG24/V |
R900618761 |
|
4WMM 6 C5X=/V |
R901283323 |
|
4WMM 6 D5X/ |
R900468328 |
|
4WMM 6 D5X//B08 |
R900487233 |
|
4WMM 6 D5X//B10 |
R901428454 |
|
4WMM 6 D5X//B10V |
R900371054 |
|
4WMM 6 D5X//B12 |
R900427547 |
|
4WMM 6 D5X//V |
R900499287 |
|
4WMM 6 D5X/F |
R900469301 |
|
4WMM 6 D5X/F SO86 |
R900377207 |
|
4WMM 6 D5X/F/B08 |
R900342116 |
|
4WMM 6 D5X/F/B08V |
R901038314 |
|
4WMM 6 D5X/F/B10 |
R900406650 |
|
4WMM 6 D5X/F/B10V |
R900911448 |
|
4WMM 6 D5X/F/B12 |
R900408046 |
|
4WMM 6 D5X/F/B20 |
R900370807 |
|
4WMM 6 D5X/F/T06 |
R900379568 |
|
4WMM 6 D5X/F/T06 SO107 |
R900569048 |
|
4WMM 6 D5X/F/V |
R900409450 |
|
4WMM 6 D5X/F/ZV |
R901303549 |
|
4WMM 6 D5X/FJ |
R901270854 |
|
4WMM 6 D5X/FJ/B10 |
R901270853 |
|
4WMM 6 D5X/FQMAG24 |
R900917926 |
|
4WMM 6 D5X/FQMAG24/B08 |
R901041825 |
|
4WMM 6 D5X/FQMAG24/V |
R900969098 |
|
4WMM 6 D5X/FQMBG24 |
R900926820 |
|
4WMM 6 D5X/J |
R901243459 |
|
4WMM 6 D5X/QMAG24/V |
R901206261 |
|
4WMM 6 D5X/QMBG24 |
R900968370 |
|
4WMM 6 D5X/SO86 |
R900536608 |
|
4WMM 6 D5X=/V |
R901283186 |
|
4WMM 6 D5X=F |
R901210354 |
|
4WMM 6 E5X/ |
R900467936 |
|
4WMM 6 E5X//B08 |
R900411035 |
|
4WMM 6 E5X//B08V |
R901056150 |
|
4WMM 6 E5X//B10 |
R900493475 |
|
4WMM 6 E5X//B12 |
R900486843 |
|
4WMM 6 E5X//B15 |
R900955056 |
|
4WMM 6 E5X//T06 |
R900332580 |
|
4WMM 6 E5X//T06 SO86 |
R901233443 |
|
4WMM 6 E5X//V |
R900496904 |
|
4WMM 6 E5X/=LB |
R900576428 |
|
4WMM 6 E5X/F |
R900405611 |
|
4WMM 6 E5X/F SO86 |
R900351210 |
|
4WMM 6 E5X/F/B08 |
R900468746 |
|
4WMM 6 E5X/F/B08V |
R901139080 |
|
4WMM 6 E5X/F/B12 |
R900488218 |
|
4WMM 6 E5X/F/B12V |
R900389059 |
|
4WMM 6 E5X/F/T06 |
R900416917 |
|
4WMM 6 E5X/F/V |
R900413615 |
|
4WMM 6 E5X/FJ |
R901248160 |
|
4WMM 6 E5X/J |
R901246836 |
|
4WMM 6 E5X/SO86 |
R900358083 |
|
4WMM 6 E5X=F |
R901425221 |
|
4WMM 6 E65-5X/ SO328 |
R901387311 |
|
4WMM 6 E65-5X/F SO107 |
R901287295 |
|
4WMM 6 E73-5X/F/V |
R978010019 |
|
4WMM 6 EA5X/ |
R900495420 |
|
4WMM 6 EA5X//B12 |
R900768277 |
|
4WMM 6 EA5X//V |
R900405663 |
|
4WMM 6 EA5X/F |
R900495891 |
|
4WMM 6 EA5X/F/V |
R900376114 |
|
4WMM 6 EA5X/FQM0G24 |
R901330796 |
|
4WMM 6 EA5X/FQMAG24 |
R900920230 |
|
4WMM 6 EA5X/QM0G24 |
R901344551 |
|
4WMM 6 EA5X/V SO57-024 |
R976722790 |
|
4WMM 6 EA6X/ IN002 |
R983054606 |
|
4WMM 6 EA6X/F -IN002 |
R983044061 |
|
4WMM 6 EB 6X/ IN002 |
R983070713 |
|
4WMM 6 EB5X/ |
R900499217 |
|
4WMM 6 EB5X//V |
R900508975 |
|
4WMM 6 EB5X/F |
R900403196 |
|
4WMM 6 EB5X/FJ |
R901240771 |
|
4WMM 6 F5X/ |
R900413562 |
|
4WMM 6 F5X/F |
R900404664 |
|
4WMM 6 F5X/F/V |
R978869019 |
|
4WMM 6 FA5X/F |
R900442840 |
|
4WMM 6 G5X/ |
R900471209 |
|
4WMM 6 G5X//B10V |
R900725034 |
|
4WMM 6 G5X//B12 |
R900475493 |
|
4WMM 6 G5X//B20 |
R901226072 |
|
4WMM 6 G5X//V |
R900487265 |
|
4WMM 6 G5X/F |
R900469533 |
|
4WMM 6 G5X/F/B08 |
R900353273 |
|
4WMM 6 G5X/F/B10 |
R900565334 |
|
4WMM 6 G5X/F/B12 |
R900436150 |
|
4WMM 6 G5X/F/V |
R900488009 |
|
4WMM 6 G5X/J |
R901432328 |
|
4WMM 6 G5X=F |
R901232257 |
|
4WMM 6 G73-5X/SO86 |
R901178482 |
|
4WMM 6 GA5X/ |
R900412911 |
|
4WMM 6 GA5X//MT |
R901423647 |
|
4WMM 6 GA5X//V |
R901269251 |
|
4WMM 6 GA5X/F |
R900470084 |
|
4WMM 6 GA5X/F/B10 |
R900738756 |
|
4WMM 6 GA5X/F/B10V |
R901342580 |
|
4WMM 6 GA6X/F IN002 |
R983058407 |
|
4WMM 6 GB5X/F |
R900361875 |
|
4WMM 6 H5X/ |
R900467370 |
|
4WMM 6 H5X//V |
R900407066 |
|
4WMM 6 H5X/F |
R900472755 |
|
4WMM 6 H5X/F/B12 |
R901129198 |
|
4WMM 6 H5X/F/V |
R900414871 |
|
4WMM 6 H5X/FJ |
R901401635 |
|
4WMM 6 H5X/J |
R901278600 |
|
4WMM 6 H5X= |
R901210355 |
|
4WMM 6 HA5X/ |
R900492186 |
|
4WMM 6 HA5X/F |
R900474830 |
|
4WMM 6 HA5X/F/B10 |
R900549662 |
|
4WMM 6 HA5X/J |
R901243507 |
|
4WMM 6 HB5X/ |
R900439127 |
|
4WMM 6 HB5X/F |
R900498362 |
|
4WMM 6 J5X/ |
R900469302 |
|
4WMM 6 J5X//B08 |
R900491533 |
|
4WMM 6 J5X//B08T06 SO86 |
R900570904 |
|
4WMM 6 J5X//B08V |
R900487043 |
|
4WMM 6 J5X//B10 |
R900352087 |
|
4WMM 6 J5X//B10V |
R901383585 |
|
4WMM 6 J5X//B12 |
R900359970 |
|
4WMM 6 J5X//B12V |
R900333898 |
|
4WMM 6 J5X//B15 |
R900495197 |
|
4WMM 6 J5X//B20 |
R900520071 |
|
4WMM 6 J5X//B25 |
R900777170 |
|
4WMM 6 J5X//N08V |
R901256039 |
|
4WMM 6 J5X//T06 SO86 |
R900560434 |
|
4WMM 6 J5X//V |
R900402164 |
|
4WMM 6 J5X/F |
R900466583 |
|
4WMM 6 J5X/F SO107 |
R901319299 |
|
4WMM 6 J5X/F/B08V |
R900920465 |
|
4WMM 6 J5X/F/B10 |
R900363911 |
|
4WMM 6 J5X/F/B10V |
R901030312 |
|
4WMM 6 J5X/F/B12 |
R900371450 |
|
4WMM 6 J5X/F/B12V |
R900729020 |
|
4WMM 6 J5X/F/B25 |
R901353639 |
|
4WMM 6 J5X/F/MT |
R900344723 |
|
4WMM 6 J5X/F/T06 SO107 |
R900571924 |
|
4WMM 6 J5X/F/T06 SO86 |
R900570905 |
|
4WMM 6 J5X/F/V |
R900402409 |
|
4WMM 6 J5X/F/ZV |
R901272493 |
|
4WMM 6 J5X/FJ |
R901250224 |
|
4WMM 6 J5X/J |
R901176588 |
|
4WMM 6 J5X/J/B10 |
R901270855 |
|
4WMM 6 J5X/SO86 |
R900370982 |
|
4WMM 6 J5X= |
R901210805 |
|
4WMM 6 J5X=/V |
R901283326 |
|
4WMM 6 J6X//B12 IN002 |
R983046516 |
|
4WMM 6 J6X/FV -IN002 |
R983044064 |
|
4WMM 6 J72-5X/ SO328 |
R901384740 |
|
4WMM 6 J72-5X/F SO107 |
R901288536 |
|
4WMM 6 J73A5X//V |
R901412064 |
|
4WMM 6 JA5X/ |
R900413600 |
|
4WMM 6 JA5X//B08 |
R900382770 |
|
4WMM 6 JA5X//V |
R900372646 |
|
4WMM 6 JA5X/F |
R900494250 |
|
4WMM 6 JA5X/F/B10V |
R901246375 |
|
4WMM 6 JA5X/F/B12 |
R900962342 |
|
4WMM 6 JA5X/F/V |
R900548479 |
|
4WMM 6 JB5X/ |
R900529106 |
|
4WMM 6 JB5X//B12 |
R901375683 |
|
4WMM 6 JB5X//V |
R900965381 |
|
4WMM 6 JB5X/F |
R900492869 |
|
4WMM 6 JB5X/F/B08V |
R901147292 |
|
4WMM 6 JB5X/F/B12 |
R901371028 |
|
4WMM 6 JB5X/F/V |
R900725424 |
|
4WMM 6 JB5X/FQMBG24/V |
R901179346 |
|
4WMM 6 L5X/ |
R900476480 |
|
4WMM 6 L5X//B08 |
R901183994 |
|
4WMM 6 L5X//B10 |
R900926245 |
|
4WMM 6 L5X/F |
R900339780 |
|
4WMM 6 LA5X/F/V |
R901263395 |
|
4WMM 6 LB5X/ |
R900387979 |
|
4WMM 6 LB5X//V |
R900328655 |
|
4WMM 6 LB5X/F |
R900486542 |
|
4WMM 6 LB5X/F/V |
R900328256 |
|
4WMM 6 LB5X/FQMBG24/B12 |
R901094259 |
|
4WMM 6 M5X/ |
R900479042 |
|
4WMM 6 M5X//B08 |
R901115196 |
|
4WMM 6 M5X/F |
R900409630 |
|
4WMM 6 M5X/F/B10 |
R900969026 |
|
4WMM 6 M5X/F/B10V |
R901459744 |
|
4WMM 6 M5X/F/T06 |
R900726594 |
|
4WMM 6 M5X/F/T06 SO107 |
R901272487 |
|
4WMM 6 M5X/F/V |
R978851421 |
|
4WMM 6 M5X/FJ |
R901250793 |
|
4WMM 6 M5X/J |
R901387757 |
|
4WMM 6 MA5X/ |
R900479758 |
|
4WMM 6 MA5X/F |
R900503338 |
|
4WMM 6 MB5X/ |
R900469065 |
|
4WMM 6 MB5X/F |
R901327925 |
|
4WMM 6 MB5X/F/B08 |
R901240055 |
|
4WMM 6 MB5X/F/B10 |
R901240056 |
|
4WMM 6 P5X/ |
R900488484 |
|
4WMM 6 PA5X/ |
R900361228 |
|
4WMM 6 Q5X/ |
R900475319 |
|
4WMM 6 Q5X//B08 |
R900583629 |
|
4WMM 6 Q5X//B10 |
R900345416 |
|
4WMM 6 Q5X/F |
R900403020 |
|
4WMM 6 Q5X/F SO86 |
R900619814 |
|
4WMM 6 QB5X/F/V |
R901347777 |
|
4WMM 6 R5X/ |
R900956018 |
|
4WMM 6 R5X//B12 |
R901229793 |
|
4WMM 6 R5X//V |
R900387206 |
|
4WMM 6 R5X/F |
R900474383 |
|
4WMM 6 R5X/F/V |
R901053430 |
|
4WMM 6 R5X/J |
R901434849 |
|
4WMM 6 RB5X/ |
R900528128 |
|
4WMM 6 RB5X//B12 |
R901119620 |
|
4WMM 6 RB5X//V |
R901033237 |
|
4WMM 6 RB5X/F |
R900409158 |
|
4WMM 6 RB5X/F/T06 |
R901187037 |
|
4WMM 6 T5X/ |
R900471263 |
|
4WMM 6 T5X//H08 |
R900514810 |
|
4WMM 6 T5X//V |
R900972316 |
|
4WMM 6 T5X/F |
R900477795 |
|
4WMM 6 T5X/F/V |
R978848035 |
|
4WMM 6 T5X/SO86 |
R900346011 |
|
4WMM 6 TA5X/F |
R900485792 |
|
4WMM 6 TB5X/ |
R900490974 |
|
4WMM 6 U5X/ |
R900402212 |
|
4WMM 6 U5X//V |
R900901377 |
|
4WMM 6 U5X/F |
R900378794 |
|
4WMM 6 U6X/ -IN002 |
R983044059 |
|
4WMM 6 U6X/F IN002 |
R983065069 |
|
4WMM 6 UA5X/ |
R901054865 |
|
4WMM 6 UA5X/F |
R900348110 |
|
4WMM 6 V5X/F |
R900458495 |
|
4WMM 6 W13-5X//B08T06 SO86 |
R900947525 |
|
4WMM 6 W13-5X/F/B08T06 SO107 |
R901289509 |
|
4WMM 6 W5-5X//T06 SO86 |
R900941451 |
|
4WMM 6 W5X/ |
R900405829 |
|
4WMM 6 W5X//B08 |
R900338220 |
|
4WMM 6 W5X//B12 |
R900481255 |
|
4WMM 6 W5X//V |
R900396057 |
|
4WMM 6 W5X/F |
R900474567 |
|
4WMM 6 W5X/F/V |
R900347953 |
|
4WMM 6 W5X/J |
R901242849 |
|
4WMM 6 W5X/J/V |
R901340293 |
|
4WMM 6 WB5X/ |
R900396000 |
|
4WMM 6 X107A5X/F |
R900934039 |
|
4WMM 6 Y5X/ |
R900495893 |
|
4WMM 6 Y5X//B10 |
R900361648 |
|
4WMM 6 Y5X//V |
R900740090 |
|
4WMM 6 Y5X/F |
R900404770 |
|
4WMM 6 Y5X/F SO107 |
R900484186 |
|
4WMM 6 Y5X/F/B08 |
R900513388 |
|
4WMM 6 Y5X/F/B10 |
R900384933 |
|
4WMM 6 Y5X/F/B12 |
R900431010 |
|
4WMM 6 Y5X/F/T06 SO107 |
R900528023 |
|
4WMM 6 Y5X/F/V |
R900343782 |
|
4WMM 6 Y5X/F/ZV |
R901297432 |
|
4WMM 6 Y5X/FJ |
R901313197 |
|
4WMM 6 Y5X/FJ/R00 SO835 |
R901199938 |
|
4WMM 6 Y5X/FQMAG24 |
R901330729 |
|
4WMM 6 Y6X/ IN002 |
R983058384 |
|
4WMM 6 Y6X/F IN002 |
R983069006 |
|
4WMM6 C -6X/ IN002 |
R983030761 |
|
4WMM6 C 6X/F -IN002 |
R983030734 |
|
4WMM6 D 6X/ -IN002 |
R983030726 |
|
4WMM6 D 6X/B08 -IN002 |
R983030746 |
|
4WMM6 D 6X/B10-IN002 |
R983030754 |
|
4WMM6 D 6X/F B10-IN002 |
R983030755 |
|
4WMM6 D 6X/F-IN002 |
R983030724 |
|
4WMM6 D 6X/F-IN002 (ESCORT) |
R983030749 |
|
4WMM6 D 6X/FV-IN002 |
R983030748 |
|
4WMM6 D 6X/V -IN002 |
R983030744 |
|
4WMM6 E 6X/ -IN002 |
R983030727 |
|
4WMM6 E 6X/F -IN002 |
R983030733 |
|
4WMM6 E 6X/V-IN002 |
R983030741 |
|
4WMM6 G 6X/F -IN002 |
R983030737 |
|
4WMM6 G6X/- IN002 |
R983030729 |
|
4WMM6 GB 6X/F-IN002 |
R983030732 |
|
4WMM6 H 6X/- IN002 |
R983030730 |
|
4WMM6 H 6X/F -IN002 |
R983030738 |
|
4WMM6 HB 6X/-IN002 |
R983049232 |
|
4WMM6 J 6X -IN002 |
R983030728 |
|
4WMM6 J 6X/B08-IN002 |
R983030751 |
|
4WMM6 J 6X/B10 -IN002 |
R983030745 |
|
4WMM6 J 6X/F -IN002 |
R983030731 |
|
4WMM6 J 6X/F -IN002 |
R983030731 |
|
4WMM6 J 6X/F B12-IN002 |
R983030747 |
|
4WMM6 J 6X/V -IN002 |
R983030743 |
|
4WMM6 JA 6X/-IN002 |
R983030758 |
|
4WMM6 JB 6X/-IN002 |
R983030752 |
|
4WMM6 M 6X/F -IN002 |
R983030740 |
|
4WMM6 M 6X/F-IN002 (ESCORT) |
R983030750 |
|
4WMM6D5X/F/B08V |
R978858372 |
|
4WMM6D5X/F/B20V |
R978910035 |
|
4WMM6D5X/R08 |
R978896582 |
|
4WMM6E1A-5X/ |
R978899129 |
|
4WMM6E25-5X/ SO43A-1287 |
R978893474 |
|
4WMM6E5X/B10V |
R978861879 |
|
4WMM6E5X/F SO43A-1042 |
R978872356 |
|
4WMM6E5X/F/V SO43A-422 |
R978864951 |
|
4WMM6E5X/N12 |
R978912427 |
|
4WMM6E73-5X/ |
R978896796 |
|
4WMM6E73-5X/F |
R978906911 |
|
4WMM6EA5X/F SO43A-1737 |
R978934753 |
|
4WMM6F5X/V |
R978847643 |
|
4WMM6G5X/B12V |
R978907928 |
|
4WMM6G5X/H08 |
R978899352 |
|
4WMM6G73-5X/B08 |
R978897078 |
|
4WMM6H53 SO41-8163 |
R979811440 |
|
4WMM6H5X/F/B12 |
R978908984 |
|
4WMM6H5X/F/V SO43A-672-1 |
R978850562 |
|
4WMM6J5X/F SO43A-1042 |
R978901388 |
|
4WMM6J73-5X/F/V SO43A-1199 |
R978877019 |
|
4WMM6LB5X/F/B12 |
R978908602 |
|
4WMM6LB5X/F/B12N12 |
R978911803 |
|
4WMM6M5X/F/B08 |
R978906568 |
|
4WMM6P5X/V |
R978853570 |
|
4WMM6Q5X/B08V |
R978890450 |
|
4WMM6R5X/F/V |
R978849411 |
|
4WMM6RB5X/F/V |
R978019220 |
|
4WMM6W12-5X/ SO43A-1287 |
R978915123 |
|
4WMM6W25-5X/ SO43A-1287 |
R978900812 |
|
4WMM6W25-5X/ SO43A-1287+440 |
R978916710 |
|
4WMM6X18-A1/F-963-0 |
R971K30963 |
|
4WMM6Y5X/B12V |
R978011242 |
|
4WMM6Y5X/F SO43A-1630 |
R978911788 |
|
WSH1P032551 4WMM 6 Y5X=F/T06 SO107 |
R987444079 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
|
09 |
10 |
11 |
12 |
13 |
|
|
WMDA |
6 |
|
5X |
/ |
F |
|
|
/ |
|
no code |
|
|
* |
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Lockable rotary knob 1) |
WMDA |
|
03 |
Size 6 |
6 |
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
|
06 |
Without spring return with detent |
F |
|
Corrosion protection |
||
|
07 |
Standard corrosion protection |
ohne Bez. |
|
Improved corrosion protection 2) |
J |
|
|
Spool position
monitoring 3) |
||
|
08 |
Without position switch |
ohne Bez. |
|
Inductive position
switch type QM |
||
|
Monitored spool position "a" |
QMAG24 |
|
|
Monitored spool position "b" |
QMBG24 |
|
|
Monitored rest position |
QM0G24 |
|
|
09 |
Without throttle insert |
ohne Bez. |
|
Throttle Ø 0,8 mm |
B084) |
|
|
Throttle Ø 1,0 mm |
B104) |
|
|
Throttle Ø 1.2 mm |
B124) |
|
|
Clamping length |
||
|
10 |
42 mm (standard) |
no code |
|
Seal material |
||
|
11 |
NBR seals |
ohne Bez. |
|
FKM seals |
V |
|
|
Observe
compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
12 |
Without locating hole |
ohne Bez. |
|
With locating hole |
/605) |
|
|
With locating hole and locking pin ISO 8752-3x8-St |
/62 |
|
|
13 |
Further details in the plain text |
* |
Preferred
types and standard units are specified in the EPS (standard price list).
1.
Key with material no. R900006980 for series 50 to 52 and
R900008158 from series 53 is included in the scope of delivery.
2.
The external parts made of metal are galvanized, treated with an
anti-corrosion agent or made of stainless steel. This design is also suitable
for on-wall applications.
3.
Only for valves with 2 spool positions; not for version “J”
4.
Use if flow > performance limit of the valve, effective in
channel P.
5.
Locking pin ISO 8752-3x8-St, material no. R900005694, separate
order
|
Model |
Code |
|
3WMDA 6 A5X/F |
R900401695 |
|
3WMDA 6 A5X/F/B10 |
R900485176 |
|
3WMDA 6 B5X/F |
R900372736 |
|
4WMDA 6 C5X/F |
R900403395 |
|
4WMDA 6 C5X/F/V |
R900419047 |
|
4WMDA 6 D5X/F |
R900468573 |
|
4WMDA 6 D5X/F/B10 |
R900342279 |
|
4WMDA 6 D5X/F/B10V |
R900709406 |
|
4WMDA 6 D5X/F/B12 |
R900371503 |
|
4WMDA 6 D5X/F/MT |
R901043238 |
|
4WMDA 6 D5X/F/V |
R900405380 |
|
4WMDA 6 E5X/F |
R900472548 |
|
4WMDA 6 E5X/F/B08 |
R900463543 |
|
4WMDA 6 E5X/F/B10 |
R900534235 |
|
4WMDA 6 E5X/F/B12 |
R900358317 |
|
4WMDA 6 E5X/F/V |
R900383476 |
|
4WMDA 6 E5X/F=LB |
R900558809 |
|
4WMDA 6 EA5X/F |
R900404055 |
|
4WMDA 6 EA5X/F/V |
R901024979 |
|
4WMDA 6 EB5X/F/B10 |
R901210783 |
|
4WMDA 6 F5X/F |
R900456638 |
|
4WMDA 6 G5X/F |
R900415571 |
|
4WMDA 6 GA5X/F |
R900375165 |
|
4WMDA 6 H5X/F |
R900419010 |
|
4WMDA 6 H5X/F/B10V |
R901298526 |
|
4WMDA 6 J5X/F |
R900479721 |
|
4WMDA 6 J5X/F/B04 |
R900395738 |
|
4WMDA 6 J5X/F/B08 |
R900370606 |
|
4WMDA 6 J5X/F/B10 |
R900353020 |
|
4WMDA 6 J5X/F/B12 |
R900374997 |
|
4WMDA 6 J5X/F/V |
R900492035 |
|
4WMDA 6 JA5X/F/B10 |
R901342651 |
|
4WMDA 6 JB5X/F |
R900499394 |
|
4WMDA 6 L5X/F |
R900572829 |
|
4WMDA 6 L5X/F/B10 |
R900773316 |
|
4WMDA 6 M5X/F |
R900338009 |
|
4WMDA 6 MA5X/F |
R901396876 |
|
4WMDA 6 Q5X/F |
R900417156 |
|
4WMDA 6 R5X/F |
R900730382 |
|
4WMDA 6 RB5X/F |
R900418368 |
|
4WMDA 6 W5X/F/B08 |
R900345362 |
|
4WMDA 6 W5X/F/B10 |
R900385073 |
|
4WMDA 6 Y5X/F |
R900391299 |
|
4WMDA 6 Y5X/F/B08 |
R900593891 |
|
4WMDA 6 Y5X/F/B10 SO329 |
R901290985 |
|
4WMDA6HB5X/F |
R978916356 |
|
4WMDA6M5X/F/V |
R978853537 |
|
4WMDA6MA5X/F/V |
R978910475 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
|
09 |
10 |
11 |
12 |
13 |
|
|
WMD |
6 |
|
5X |
/ |
F |
|
|
/ |
|
no code |
|
|
* |
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Rotary knob |
WMD |
|
03 |
Size 6 |
6 |
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
|
06 |
Without spring return with detent |
F |
|
Corrosion protection |
||
|
07 |
Standard corrosion protection |
ohne Bez. |
|
Improved corrosion protection 1) |
J |
|
|
Spool position
monitoring 2) |
||
|
08 |
Without position switch |
ohne Bez. |
|
Inductive position switch type QM |
||
|
Monitored spool
position "a" |
QMAG24 |
|
|
Monitored spool
position "b" |
QMBG24 |
|
|
Monitored rest
position |
QM0G24 |
|
|
09 |
Without throttle insert |
ohne Bez. |
|
Throttle Ø 0,8 mm |
B083) |
|
|
Throttle Ø 1,0 mm |
B103) |
|
|
Throttle Ø 1.2 mm |
B123) |
|
|
Clamping length |
||
|
10 |
42 mm (standard) |
no code |
|
Seal material |
||
|
11 |
NBR seals |
ohne Bez. |
|
FKM seals |
V |
|
|
Observe compatibility of seals with hydraulic fluid used.
(Other seals upon request) |
||
|
12 |
Without locating hole |
ohne Bez. |
|
With locating hole |
/60 4) |
|
|
With locating hole and locking pin ISO 8752-3x8-St |
/62 |
|
|
13 |
Further details in
the plain text |
* |
1.
The external parts made of metal are galvanized, treated with an
anti-corrosion agent or made of stainless steel. This design is also suitable
for on-wall applications.
2.
Only for valves with 2 spool positions; not for version “J”
3.
Use if flow > performance limit of the valve, effective in
channel P.
4.
Locking pin ISO 8752-3x8-St, material no. R900005694,
separate order
|
Model |
Code |
|
3WMD 6 A5X/F |
R900490032 |
|
3WMD 6 A5X/F/B10 |
R900717026 |
|
3WMD 6 A5X/F/V |
R900382213 |
|
3WMD 6 B5X/F |
R900372737 |
|
4WMD 6 C5X/F |
R900476226 |
|
4WMD 6 C5X/F/V |
R978850229 |
|
4WMD 6 D5X/F |
R900476880 |
|
4WMD 6 D5X/F/62 |
R901378656 |
|
4WMD 6 D5X/F/B08 |
R900347461 |
|
4WMD 6 D5X/F/B08V |
R900397098 |
|
4WMD 6 D5X/F/B10 |
R900497917 |
|
4WMD 6 D5X/F/B12 |
R900538115 |
|
4WMD 6 D5X/F/V |
R900479041 |
|
4WMD 6 E5X/F |
R900475573 |
|
4WMD 6 E5X/F/B08 |
R900442457 |
|
4WMD 6 E5X/F/B10 |
R900328369 |
|
4WMD 6 E5X/F/T06 |
R900491482 |
|
4WMD 6 E5X/F/V |
R900407525 |
|
4WMD 6 EA5X/F |
R900495952 |
|
4WMD 6 EA5X/F/V |
R900561599 |
|
4WMD 6 EB5X/F |
R900485076 |
|
4WMD 6 EB5X/F/V |
R901045376 |
|
4WMD 6 F5X/F/B12 |
R901025724 |
|
4WMD 6 F5X/F/V |
R900598097 |
|
4WMD 6 FA5X/F |
R900357330 |
|
4WMD 6 G5X/F |
R900405610 |
|
4WMD 6 GA5X/F/B08 |
R900957436 |
|
4WMD 6 GB5X/F |
R900335194 |
|
4WMD 6 GB5X/F/V |
R900970120 |
|
4WMD 6 H5X/F |
R900413726 |
|
4WMD 6 J5X/F |
R900471013 |
|
4WMD 6 J5X/F/B08 |
R900487761 |
|
4WMD 6 J5X/F/B10 |
R900368985 |
|
4WMD 6 J5X/F/B12 |
R900401839 |
|
4WMD 6 J5X/F/H08 |
R901216165 |
|
4WMD 6 J5X/F/V |
R900477921 |
|
4WMD 6 JA5X/F |
R900332577 |
|
4WMD 6 L5X/F |
R900342023 |
|
4WMD 6 M5X/F |
R900408478 |
|
4WMD 6 M5X/F/V |
R900488468 |
|
4WMD 6 MB5X/F |
R900957397 |
|
4WMD 6 T5X/F |
R900495904 |
|
4WMD 6 U5X/F |
R900344869 |
|
4WMD 6 W5X/F |
R900936182 |
|
4WMD 6 Y5X/F |
R901300131 |
|
4WMD6E5X/F/B08V |
R978847652 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
09 |
10 |
|
|
WMM 6 |
6 |
|
5X |
/ |
|
XC |
|
|
|
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Hand lever |
WMM |
|
03 |
Size 6 |
6 |
|
04 |
Symbols, e. g. C, E, EA, EB, etc.; for the
possible version, see "Circuit diagrams" |
|
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
|
06 |
With spring return |
no code |
|
With detent |
F |
|
|
07 |
Valves in explosion-protected design; for
details, please refer to the information on explosion protection |
XC |
|
08 |
Without throttle insert |
no code |
|
Throttle Ø 0,8 mm |
B082) |
|
|
Throttle Ø 1,0 mm |
B102) |
|
|
Throttle Ø 1.2 mm |
B122) |
|
|
Seal material |
||
|
09 |
NBR seals |
no code |
|
FKM seals |
V |
|
|
Observe
compatibility of seals with hydraulic fluid used. |
||
|
10 |
Without locating hole |
no code |
|
With locating hole |
/60 1) |
|
|
With locating hole and grooved pin ISO 8741-3x8-St |
/62 |
|
1.
Grooved pin ISO 8741-3x8-St-A2C, material no. R900005076
(separate order)
2.
Use if volume flow > performance limits of the valve,
effective in channel P.
included
in the scope of delivery : Valve operating instructions with declaration of
conformity in part III
|
Model |
Code |
|
3WMM 6 B5X/FXC |
R901291448 |
|
4WMM 6 C5X/FXC |
R901328130 |
|
4WMM 6 C5X/XC |
R901420511 |
|
4WMM 6 D5X/FXC |
R901281058 |
|
4WMM 6 D5X/FXC/B10 |
R901259500 |
|
4WMM 6 D5X/XC |
R901253902 |
|
4WMM 6 E5X/FXC |
R901275453 |
|
4WMM 6 E5X/XC |
R901354557 |
|
4WMM 6 E5X/XC/T06 |
R901409391 |
|
4WMM 6 G5X/XC |
R901359900 |
|
4WMM 6 H5X/XC |
R901428491 |
|
4WMM 6 HA5X/XC |
R901254557 |
|
4WMM 6 J5X/FXC |
R901315212 |
|
4WMM 6 J5X/XC |
R901253901 |
|
4WMM 6 R5X/XC |
R901294934 |
|
4WMM 6 T5X/XC |
R901401277 |
|
4WMM 6 W5-5X/XC |
R901370463 |
|
4WMM 6 W5X/XC |
R901424210 |
|
4WMM 6 Y5X/FXC |
R901338628 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
|
07 |
08 |
09 |
10 |
11 |
|
|
WMM |
10 |
|
5X |
/ |
|
/ |
|
|
|
– |
* |
|
01 |
3 main ports |
3 |
||
|
4 main ports |
4 |
|||
|
Types of actuation |
||||
|
02 |
Manually: hand lever |
WMM |
||
|
03 |
Size 10 |
10 |
||
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
||
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
||
|
06 |
With spring return |
no code |
||
|
With detent |
F |
|||
|
Corrosion protection |
||||
|
07 |
Standard corrosion protection |
no code |
||
|
Improved corrosion protection (720 h salt
spray test according to EN ISO 9227) |
J4 |
|||
|
Throttle insert1) |
||||
|
08 |
Without throttle insert |
no code |
||
|
With throttle insert: |
||||
|
Port |
Throttle Ø in mm mm |
|||
|
0,8 mm |
1,0 mm |
1,2 mm |
||
|
P |
B08 |
B10 |
B12 |
|
|
A |
H08 |
H10 |
H12 |
|
|
B |
R08 |
R10 |
R12 |
|
|
A and B |
N08 |
N10 |
N12 |
|
|
T 2) |
X08 |
X10 |
X12 |
|
|
Further throttle
insert diameters upon request. |
||||
|
Seal material |
||||
|
09 |
NBR seals |
M |
||
|
FKM seals |
V |
|||
|
Seals for HFC hydraulic fluids |
MH |
|||
|
Observe
compatibility of seals with hydraulic fluid used. |
||||
|
Pilot oil port |
||||
|
10 |
Whitworth pipe thread G1/4 |
‒ |
||
|
11 |
Further details in the plain text |
* |
||
1.
When the admissible valve performance limit is exceeded,
throttle inserts are to be installed (see Performance limits).
2.
When throttle inserts are used in channel T, the pressure in the
working ports and in case of connection to the tank chambers must not exceed
210 bar.
|
Model |
Code |
|
3WMM 10 A3X/F IN010 |
R983044004 |
|
3WMM 10 A3X/FYBW |
R900938380 |
|
3WMM 10 A3X/YAW |
R900529344 |
|
3WMM 10 A5X//B08M |
R901408283 |
|
3WMM 10 A5X//M |
R901376689 |
|
3WMM 10 A5X/F/M |
R901362284 |
|
3WMM 10 A5X/F/V |
R901410666 |
|
3WMM 10 A5X/J5/M |
R901442315 |
|
3WMM 10 B3X IN010 |
R983030783 |
|
3WMM 10 B3X/F IN010 |
R983030786 |
|
3WMM 10 B3X/YAW |
R900529392 |
|
3WMM 10 B5X/F/M |
R901422970 |
|
3WMM 10 B5X/F/V |
R901430446 |
|
4 WMM 10 GA 3X SO26-694 |
R987152404 |
|
4WMM 10 C3X/YBW |
R901054247 |
|
4WMM 10 C5X//M |
R901362285 |
|
4WMM 10 C5X/F/M |
R901362287 |
|
4WMM 10 C5X/F/V |
R901418361 |
|
4WMM 10 C5X/J5/M |
R901434151 |
|
4WMM 10 D3X//V IN010 |
R983062400 |
|
4WMM 10 D3X/FYABW |
R900506723 |
|
4WMM 10 D3X/FYAW |
R900515172 |
|
4WMM 10 D3X/FYAW/V |
R900521535 |
|
4WMM 10 D3X/FYBW |
R900534079 |
|
4WMM 10 D3X/YAW |
R900953373 |
|
4WMM 10 D5X//M |
R901350271 |
|
4WMM 10 D5X//V |
R901401280 |
|
4WMM 10 D5X/F/B08M |
R901408284 |
|
4WMM 10 D5X/F/M |
R901350272 |
|
4WMM 10 D5X/F/V |
R901362289 |
|
4WMM 10 D5X/J5/M |
R901397209 |
|
4WMM 10 E1X/F SO70 |
R900555364 |
|
4WMM 10 E3X/ |
R900589983 |
|
4WMM 10 E3X//V IN010 |
R983073931 |
|
4WMM 10 E3X/FYABW |
R900509996 |
|
4WMM 10 E3X/FYAW |
R900565182 |
|
4WMM 10 E3X/FYBW |
R900553495 |
|
4WMM 10 E3X/YABW |
R900522837 |
|
4WMM 10 E5X//B08M |
R901408285 |
|
4WMM 10 E5X//M |
R901350265 |
|
4WMM 10 E5X//V |
R901362290 |
|
4WMM 10 E5X/F/B12M |
R901408339 |
|
4WMM 10 E5X/F/M |
R901350266 |
|
4WMM 10 E5X/F/V |
R901362292 |
|
4WMM 10 E5X/J5/M |
R901404263 |
|
4WMM 10 EA3X/ IN010 |
R983073224 |
|
4WMM 10 EA5X//M |
R901362294 |
|
4WMM 10 EA5X//V |
R901397277 |
|
4WMM 10 EB3X/F IN010 |
R983046822 |
|
4WMM 10 EB5X//M |
R901362295 |
|
4WMM 10 EB5X//V |
R901403957 |
|
4WMM 10 EB5X/F/M |
R901430400 |
|
4WMM 10 F3X/ IN010 |
R983044012 |
|
4WMM 10 F5X//M |
R901383274 |
|
4WMM 10 G3X/YABW |
R900511423 |
|
4WMM 10 G5X//B20M |
R901362296 |
|
4WMM 10 G5X//M |
R901350267 |
|
4WMM 10 G5X//V |
R901362297 |
|
4WMM 10 G5X/F/M |
R901350268 |
|
4WMM 10 G5X/F/V |
R901362299 |
|
4WMM 10 G5X/J5/M |
R901445099 |
|
4WMM 10 GA5X/F/M |
R901362418 |
|
4WMM 10 GB5X/F/B08V |
R901155474 |
|
4WMM 10 GB5X/F/M |
R901362300 |
|
4WMM 10 H3X/F |
R988002562 |
|
4WMM 10 H3X/FYABW |
R900589669 |
|
4WMM 10 H5X//M |
R901362404 |
|
4WMM 10 H5X/F/M |
R901362405 |
|
4WMM 10 H5X/FJ5/M |
R901427121 |
|
4WMM 10 HA1X/ |
R979011499 |
|
4WMM 10 J3X/ |
R900586919 |
|
4WMM 10 J3X/FYABW |
R900510346 |
|
4WMM 10 J3X/FYABW/X30 |
R900514080 |
|
4WMM 10 J3X/FYBW |
R900532714 |
|
4WMM 10 J3X/Y0W |
R901125868 |
|
4WMM 10 J3X/YABW |
R900509287 |
|
4WMM 10 J3X/YABW/N08 |
R900619362 |
|
4WMM 10 J3X/YABW/V |
R900734948 |
|
4WMM 10 J3X/YBW |
R900532761 |
|
4WMM 10 J5X//B08M |
R901408286 |
|
4WMM 10 J5X//B12V |
R901429652 |
|
4WMM 10 J5X//M |
R901350184 |
|
4WMM 10 J5X//V |
R901362407 |
|
4WMM 10 J5X/F/B12M |
R901432578 |
|
4WMM 10 J5X/F/M |
R901350264 |
|
4WMM 10 J5X/F/V |
R901362408 |
|
4WMM 10 J5X/FJ5/M |
R901397208 |
|
4WMM 10 J5X/J5/M |
R901410278 |
|
4WMM 10 J5X/J5/V |
R901158859 |
|
4WMM 10 J73-5X//M |
R901434895 |
|
4WMM 10 JA5X//M |
R901136812 |
|
4WMM 10 JB3X/FYBW/V |
R901179340 |
|
4WMM 10 JB5X//M |
R901362409 |
|
4WMM 10 M5X//M |
R901401636 |
|
4WMM 10 Q3X/ IN010 |
R983044010 |
|
4WMM 10 Q3X/F IN010 |
R983043995 |
|
4WMM 10 Q5X//M |
R901376690 |
|
4WMM 10 Q5X/F/B10V |
R901434152 |
|
4WMM 10 Q5X/F/M |
R901439137 |
|
4WMM 10 R3X/F IN010 |
R983043994 |
|
4WMM 10 R5X/F/M |
R901362410 |
|
4WMM 10 RB5X/F/M |
R901422527 |
|
4WMM 10 T5X//M |
R901362411 |
|
4WMM 10 T5X/F/M |
R901362412 |
|
4WMM 10 T5X/J5/M |
R901429265 |
|
4WMM 10 U3X/ IN010 |
R983044008 |
|
4WMM 10 U5X//M |
R901428996 |
|
4WMM 10 U5X/F/B12M |
R901407702 |
|
4WMM 10 U5X/F/M |
R901237179 |
|
4WMM 10 W3X/ IN010 |
R983044006 |
|
4WMM 10 W5X//M |
R901362413 |
|
4WMM 10 W5X//V |
R901362414 |
|
4WMM 10 Y3X/ IN010 |
R983044005 |
|
4WMM 10 Y3X/FYBW |
R900513724 |
|
4WMM 10 Y5X//M |
R901362416 |
|
4WMM 10 Y5X/F/M |
R901376694 |
|
4WMM10 C 3X/ IN010 |
R983030775 |
|
4WMM10 C 3X/F IN010 |
R983030776 |
|
4WMM10 D 3X/ IN010 |
R983030771 |
|
4WMM10 D 3X/ IN010 |
R983030771 |
|
4WMM10 D 3X/F IN010 |
R983030770 |
|
4WMM10 E 3X/ IN010 |
R983030773 |
|
4WMM10 E 3X/F IN010 |
R983030766 |
|
4WMM10 E 3X/F/V IN010 |
R983065092 |
|
4WMM10 G 3X IN010 |
R983030767 |
|
4WMM10 G 3X/F IN010 |
R983030769 |
|
4WMM10 H 3X/ IN010 |
R983030777 |
|
4WMM10 H 3X/F IN010 |
R983030778 |
|
4WMM10 J 3X/ IN010 |
R983030768 |
|
4WMM10 J 3X/F IN010 |
R983030774 |
|
4WMM10 J 3X/F/V IN010 |
R983065091 |
|
4WMM10 J 3X/V IN010 |
R983030781 |
|
4WMM10 JB 3X IN010 |
R983030787 |
|
4WMM10 L 3X IN010 |
R983030784 |
|
4WMM10 MA 3X IN010 |
R983030779 |
|
4WMM10 MA 3X/F IN010 |
R983030789 |
|
4WMM10 T 3X/ IN010 |
R983030772 |
|
4WMM10 T 3X/F IN010 |
R983030780 |
|
4WMM10 Y 3X/F IN010 |
R983030790 |
|
4WMM10D3X/B12 |
R978012558 |
|
4WMM10E3X/B10V |
R978019277 |
|
4WMM10E3X/F/B08V |
R978897259 |
|
4WMM10L3X/F/V |
R978866067 |
|
4WMM10M3X/F/R08 |
R978008680 |
|
4WMM10M3X/F/V |
R978014973 |
|
4WMM10P3X/F/V |
R978891927 |
|
4WMM10P3X/V |
R978909360 |
|
4WMM10R3X/V |
R978897486 |
|
4WMM10U3X/V |
R978863974 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
|
09 |
10 |
11 |
12 |
13 |
|
|
WMR |
6 |
|
5X |
/ |
no code |
|
|
/ |
|
no code |
|
|
* |
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Roller plunger (see Dimensions) |
WMR |
|
03 |
Size 6 |
6 |
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
|
06 |
With spring return |
ohne Bez. |
|
Corrosion protection |
||
|
07 |
Standard corrosion protection |
ohne Bez. |
|
Improved corrosion protection 1) |
J |
|
|
Spool position
monitoring 2) |
||
|
08 |
Without position switch |
ohne Bez. |
|
Inductive position
switch type QM |
||
|
Monitored spool position "a" |
QMAG24 |
|
|
Monitored spool position "b" |
QMBG24 |
|
|
Monitored rest position |
QM0G24 |
|
|
09 |
Without throttle insert |
ohne Bez. |
|
Throttle Ø 0,8 mm |
B08 3) |
|
|
Throttle Ø 1,0 mm |
B10 3) |
|
|
Throttle Ø 1.2 mm |
B12 3) |
|
|
Clamping length |
||
|
10 |
42 mm (standard) |
no code |
|
Seal material |
||
|
11 |
NBR seals |
ohne Bez. |
|
FKM seals |
V |
|
|
Observe
compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
12 |
Without locating hole |
ohne Bez. |
|
With locating hole |
/60 4) |
|
|
With locating hole and locking pin ISO 8752-3x8-St |
/62 |
|
|
13 |
Further details in the plain text |
* |
1.
The external parts made of metal are galvanized, treated with an
anti-corrosion agent or made of stainless steel. This design is also suitable
for on-wall applications.
2.
Only for valves with 2 spool positions and versions “WMR”; not
for version “J”
3.
Use if flow > performance limit of the valve, effective in
channel P.
4.
Locking pin ISO 8752-3x8-St, material no. R900005694,
separate order
Preferred types and standard units are
specified in the EPS (standard price list).
|
Model |
Code |
|
3WMR 6 A5X/ |
R900471414 |
|
3WMR 6 A5X//B10 |
R900419287 |
|
3WMR 6 A5X//V |
R900497156 |
|
3WMR 6 B5X/ |
R900479334 |
|
3WMR 6 B5X//B10 |
R901119617 |
|
3WMR 6 B5X//B12 |
R901053788 |
|
4WMR 6 C5X/ |
R900469300 |
|
4WMR 6 C5X//B08 |
R900408725 |
|
4WMR 6 C5X//B10V |
R900560855 |
|
4WMR 6 C5X//V |
R900416890 |
|
4WMR 6 C5X/QMAG24 |
R900940597 |
|
4WMR 6 D5X/ |
R900465984 |
|
4WMR 6 D5X//B08 |
R900346009 |
|
4WMR 6 D5X//B10 |
R900499014 |
|
4WMR 6 D5X//B12 |
R900415679 |
|
4WMR 6 D5X//B12/62 |
R901257293 |
|
4WMR 6 D5X//T06 |
R900474952 |
|
4WMR 6 D5X//V |
R900478694 |
|
4WMR 6 D5X//X15 |
R900391466 |
|
4WMR 6 D5X/QMAG24 |
R900928150 |
|
4WMR 6 D5X/QMBG24 |
R900942188 |
|
4WMR 6 E5X/ |
R900469532 |
|
4WMR 6 E5X/ SO43A-1838 |
R978037207 |
|
4WMR 6 EA5X/ |
R900474677 |
|
4WMR 6 EB5X/ |
R900511039 |
|
4WMR 6 EB5X/QM0G24 |
R901424492 |
|
4WMR 6 G5X/ |
R900477993 |
|
4WMR 6 GA5X/ |
R900363738 |
|
4WMR 6 H5X/ |
R900476688 |
|
4WMR 6 H5X//V |
R901194263 |
|
4WMR 6 J5X/ |
R900477994 |
|
4WMR 6 J5X//B08 |
R900550097 |
|
4WMR 6 J5X//V |
R900561587 |
|
4WMR 6 JA5X/ |
R900433639 |
|
4WMR 6 L5X/ |
R900488440 |
|
4WMR 6 M5X/ |
R900479763 |
|
4WMR 6 MA5X/ |
R900936788 |
|
4WMR 6 Q5X//V |
R901259440 |
|
4WMR 6 R5X/ |
R900515154 |
|
4WMR 6 T5X/ |
R900478899 |
|
4WMR 6 U5X/ |
R900402726 |
|
4WMR 6 V5X/ |
R900975562 |
|
4WMR 6 Y5X/ |
R900403680 |
|
4WMR 6 Y5X//B10 |
R900738755 |
|
4WMR 6 Y5X//B10V |
R901220732 |
|
4WMR 6 Y5X//B12 |
R901253033 |
|
4WMR 6 Y5X//V |
R900512164 |
|
4WMR 6 Y5X/QMAG24 |
R901033221 |
|
4WMR6D52 SO41-7097 |
R979811376 |
|
4WMR6D5X/B08V |
R978865188 |
|
4WMR6D5X/O SO43A-380-2 |
R978891609 |
|
4WMR6G5X/V |
R978877191 |
|
4WMR6GB5X/ |
R978892090 |
|
WSH1152593 4WMR 6 D5X=J/T06 SO900 |
R987444080 |
|
WSH1P031307 4WMU 6D 5X J/T06 SO900 SP03- |
R987446932 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
|
09 |
10 |
11 |
12 |
13 |
|
|
WMRZ |
6 |
|
6X |
/ |
no code |
|
|
/ |
|
Z |
|
|
* |
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Roller plunger (see Dimensions) |
WMRZ |
|
03 |
Size 6 |
6 |
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
|
05 |
Component series 60 … 69 (60 … 69: unchanged
installation and connection dimensions) |
6X |
|
06 |
With spring return |
ohne Bez. |
|
Corrosion protection |
||
|
07 |
Standard corrosion protection |
ohne Bez. |
|
Improved corrosion protection 1) |
J |
|
|
Spool position
monitoring 2) |
||
|
08 |
Without position switch |
ohne Bez. |
|
Inductive position
switch type QM |
||
|
Monitored spool position "a" |
QMAG24 |
|
|
Monitored spool position "b" |
QMBG24 |
|
|
Monitored rest position |
QM0G24 |
|
|
09 |
Without throttle insert |
ohne Bez. |
|
Throttle Ø 0,8 mm |
B08 3) |
|
|
Throttle Ø 1,0 mm |
B10 3) |
|
|
Throttle Ø 1.2 mm |
B12 3) |
|
|
Clamping length |
||
|
10 |
22 mm |
Z |
|
Seal material |
||
|
11 |
NBR seals |
ohne Bez. |
|
FKM seals |
V |
|
|
Observe
compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
12 |
Without locating hole |
ohne Bez. |
|
With locating hole |
/60 4) |
|
|
With locating hole and locking pin ISO 8752-3x8-St |
/62 |
|
|
13 |
Further details in the plain text |
* |
1.
The external parts made of metal are galvanized, treated with an
anti-corrosion agent or made of stainless steel. This design is also suitable
for on-wall applications.
2.
Only for valves with 2 spool positions; not for version “J”
3.
Use if flow > performance limit of the valve, effective in
channel P.
4.
Locking pin ISO 8752-3x8-St, material no. R900005694,
separate order
Preferred types and standard units are
specified in the EPS (standard price list).
|
Model |
Code |
|
3WMRZ 6 A6X//ZV |
R901350755 |
|
4WMRZ 6 C6X/ |
R901232267 |
|
4WMRZ 6 C6X//B12V |
R901412515 |
|
4WMRZ 6 C6X//V |
R901376289 |
|
4WMRZ 6 D6X/ |
R901139843 |
|
4WMRZ 6 D6X//B10V |
R901282178 |
|
4WMRZ 6 D6X//ZV |
R901112178 |
|
4WMRZ 6 D6X/QMAG24 |
R901325329 |
|
4WMRZ 6 EB6X//ZV |
R901112179 |
|
4WMRZ 6 GA6X/ZV |
R901195573 |
|
4WMRZ 6 Y6X//ZV |
R901112177 |
|
4WMRZ 6 Y6X/QMBG24 |
R901316530 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
07 |
08 |
|
09 |
10 |
11 |
12 |
13 |
|
|
WMU |
6 |
|
5X |
/ |
no code |
|
|
/ |
|
no code |
|
|
* |
|
01 |
3 main ports |
3 |
|
4 main ports |
4 |
|
|
Type of actuation |
||
|
02 |
Roller plunger (see Dimensions) |
WMU |
|
03 |
Size 6 |
6 |
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
|
06 |
With spring return |
ohne Bez. |
|
Corrosion protection |
||
|
07 |
Standard corrosion protection |
ohne Bez. |
|
Improved corrosion protection 1) |
J |
|
|
Spool position
monitoring 2) |
||
|
08 |
Without position switch |
ohne Bez. |
|
Inductive position
switch type QM |
||
|
Monitored spool position "a" |
QMAG24 |
|
|
Monitored spool position "b" |
QMBG24 |
|
|
Monitored rest position |
QM0G24 |
|
|
09 |
Without throttle insert |
ohne Bez. |
|
Throttle Ø 0,8 mm |
B08 3) |
|
|
Throttle Ø 1,0 mm |
B10 3) |
|
|
Throttle Ø 1.2 mm |
B12 3) |
|
|
Clamping length |
||
|
10 |
42 mm (standard) |
no code |
|
Seal material |
||
|
11 |
NBR seals |
ohne Bez. |
|
FKM seals |
V |
|
|
Observe
compatibility of seals with hydraulic fluid used. (Other seals upon request) |
||
|
12 |
Without locating hole |
ohne Bez. |
|
With locating hole |
/60 4) |
|
|
With locating hole and locking pin ISO 8752-3x8-St |
/62 |
|
|
13 |
Further details in the plain text |
* |
1.
The external parts made of metal are galvanized, treated with an
anti-corrosion agent or made of stainless steel. This design is also suitable
for on-wall applications.
2.
Only for valves with 2 spool positions and versions “WMU”; not
for version “J”
3.
Use if flow > performance limit of the valve, effective in
channel P.
4.
Locking pin ISO 8752-3x8-St, material no. R900005694,
separate order
|
Model |
Code |
|
3WMU 6 A5X/ |
R900401031 |
|
3WMU 6 A5X//V |
R900378795 |
|
3WMU 6 A5X/B08 |
R900249981 |
|
3WMU 6 B5X/ |
R900328215 |
|
3WMU 6 B5X//B08 |
R900950154 |
|
4WMU 6 C5X/ |
R900403521 |
|
4WMU 6 C5X//B12 |
R901297988 |
|
4WMU 6 D5X/ |
R900479282 |
|
4WMU 6 D5X//B10 |
R900497172 |
|
4WMU 6 D5X//B12 |
R900773202 |
|
4WMU 6 D5X//V |
R900402012 |
|
4WMU 6 D5X/QMAG24/B08V |
R901231688 |
|
4WMU 6 D5X/QMBG24 |
R900709787 |
|
4WMU 6 E5X/ |
R900415572 |
|
4WMU 6 E5X//B10 |
R900756698 |
|
4WMU 6 EA5X/ |
R900347855 |
|
4WMU 6 G5X/ |
R900495042 |
|
4WMU 6 GA5X/ |
R901297962 |
|
4WMU 6 J5X/ |
R900418863 |
|
4WMU 6 JA5X/ |
R901161127 |
|
4WMU 6 JA5X//B08 |
R901273174 |
|
4WMU 6 JB5X/ |
R900935737 |
|
4WMU 6 M5X/ |
R900536431 |
|
4WMU 6 M5X//V |
R901299269 |
|
4WMU 6 Y5X/ |
R900515177 |
|
4WMU 6 Y5X//V |
R978863192 |
|
4WMU 6 Y5X/SO329 |
R900514239 |
|
4WMU6D53-SO41-8641 |
R979811442 |
|
4WMU6D53-SO41-8859 |
R979001602 |
|
4WMU6HA5X/ |
R978903847 |
|
4WMU6JA5X/B08 |
R978879513 |
Type code
|
01 |
02 |
03 |
04 |
05 |
|
06 |
|
07 |
08 |
09 |
10 |
11 |
|
|
WN |
10 |
|
5X |
/ |
|
/ |
no code |
|
|
|
* |
|
01 |
3 main ports |
3 |
||
|
4 main ports |
4 |
|||
|
Types of actuation |
||||
|
02 |
Fluidic: pilot pressure 1.5 … 10 bar |
WN |
||
|
03 |
Size 10 |
10 |
||
|
04 |
Symbols e. g. C, E, EA, EB, etc.; for the
possible version, see Symbols and Types of actuation |
|
||
|
05 |
Component series 50 … 59 (50 … 59: unchanged
installation and connection dimensions) |
5X |
||
|
06 |
With spring return |
no code |
||
|
Without spring return (not for valve with 3 spool
positions) |
O |
|||
|
Without spring return with detent (not for valve
with 3 spool positions) |
OF |
|||
|
Corrosion protection |
||||
|
07 |
Standard corrosion protection |
no code |
||
|
Throttle
insert 1) |
||||
|
08 |
Without throttle insert |
no code |
||
|
With throttle insert: |
||||
|
Port |
Throttle Ø in mm |
|||
|
0,8 mm |
1,0 mm |
1,2 mm |
||
|
P |
B08 |
B10 |
B12 |
|
|
A |
H08 |
H10 |
H12 |
|
|
B |
R08 |
R10 |
R12 |
|
|
A and B |
N08 |
N10 |
N12 |
|
|
T 2) |
X08 |
X10 |
X12 |
|
|
Further throttle
insert diameters upon request. |
||||
|
Seal material |
||||
|
09 |
NBR seals |
M |
||
|
FKM seals |
V |
|||
|
Seals for HFC hydraulic fluids |
MH |
|||
|
Observe
compatibility of seals with hydraulic fluid used. |
||||
|
Pilot oil port |
||||
|
10 |
Whitworth pipe thread G1/4 |
‒ |
||
|
UNF thread 7/16 “ - 20 UNF |
/12 |
|||
|
11 |
Further details in the plain text |
* |
||
1.
When the admissible valve performance limit is exceeded,
throttle inserts are to be installed (see Performance limits).
2.
When throttle inserts are used in channel T, the pressure in the
working ports and in case of connection to the tank chambers must not exceed
210 bar.
|
Model |
Code |
|
3WN10B3X/12 |
R978918336 |
|
4WN 10 D3X//12 |
R978870561 |
|
4WN 10 D5X//M |
R901346384 |
|
4WN 10 D5X//V |
R901442596 |
|
4WN 10 D5X/O/M |
R901430601 |
|
4WN 10 D5X/OF/M |
R901362421 |
|
4WN 10 D5X/OF/M/12 |
R901426392 |
|
4WN 10 E5X//M |
R901347062 |
|
4WN 10 E5X//V |
R901412066 |
|
4WN 10 E5X//V/12 |
R901426394 |
|
4WN 10 EA5X//M |
R901439919 |
|
4WN 10 G5X//M |
R901347063 |
|
4WN 10 H5X//M |
R901400837 |
|
4WN 10 J5X//M |
R901347061 |
|
4WN 10 J5X//M/12 |
R901426396 |
|
4WN10C3X/12 |
R978872554 |
|
4WN10C3X/OF/12 |
R978898228 |
|
4WN10D3X/OF/12 |
R978901239 |
|
4WN10D3X/OF/12 SO43A-1825 |
R978028333 |
|
4WN10D3X/OF/V/12 |
R978864283 |
|
4WN10E3X/12 |
R978866198 |
|
4WN10E3X/V/12 |
R978009276 |
|
4WN10E3X/V/12 SO43A-1037 |
R978864654 |
|
4WN10EB3X/12 |
R978872586 |
|
4WN10F3X/12 |
R978912917 |
|
4WN10G3X/12 |
R978877972 |
|
4WN10G3X/V/12 |
R978862433 |
|
4WN10H3X/12 |
R978896427 |
|
4WN10J3X/12 |
R978870562 |
|
4WN10Y3X/V/12 |
R978862205 |
0 nhận xét:
Đăng nhận xét
